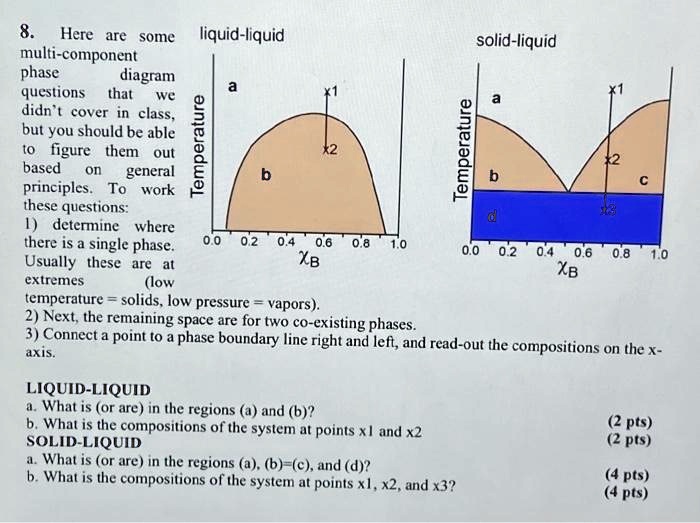

8. Here are some liquid-liquid, solid-liquid, multi-component phase diagram questions that we didn't cover in class, but you should be able to figure them out based on general principles. To work these questions: 1. Determine where there is a single phase. 0.0 0.2 0.4 0.6 0.8 1.0 XB 0.2 0.4 0.6 0.8 Usually these are at XB extremes (low temperature = solids, low pressure = vapors). 2. Next, the remaining space is for two co-existing phases. 3. Connect a point to a phase boundary line right and left, and read out the compositions on the x-axis.
LIQUID-LIQUID a. What is or are in the regions a and b? b. What is the composition of the system at points x1 and x2?
SOLID-LIQUID a. What is or are in the regions a, b, c, and d? b. What is the composition of the system at points x1, x2, and x3?
2 pts 2 pts 4 pts 4 pts
