The value of X in this question is 4.
PLZ MAKE SURE TO INCLUDE EACH AND EVERY STEP. DO NOT USE AI FOR SOLVING ELSE I WILL REPORT.
There should be proper solution.

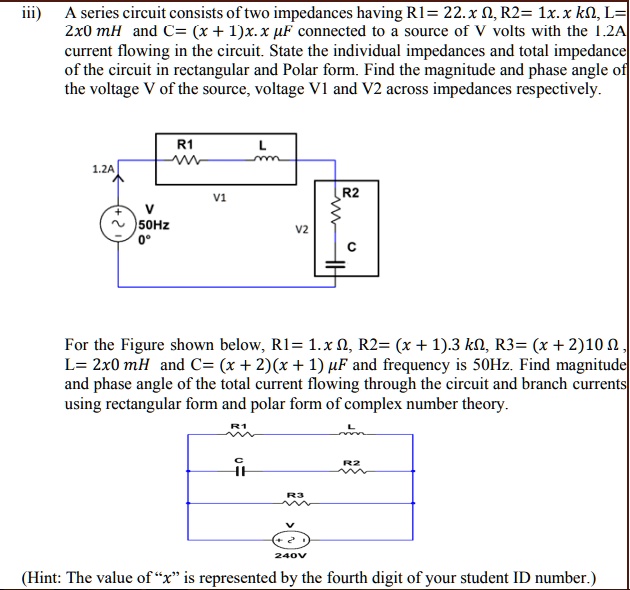

iii) A series circuit consists of two impedances having R1= 22.x ,R2=1x.x k,L 2x0 mH and C=(x + 1)x.x F connected to a source of V volts with the 1.2A current flowing in the circuit. State the individual impedances and total impedance of the circuit in rectangular and Polar form. Find the magnitude and phase angle of the voltage V of the source, voltage V1 and V2 across impedances respectively.
R1 WW
L
V1
R2
V
50Hz
V2
For the Figure shown below,R1=1.x ,R2=x +1.3 k,R3=(x+210 L= 2x0 mH and C=(x + 2)(x + 1) F and frequency is 50Hz.Find magnitude and phase angle of the total current flowing through the circuit and branch currents using rectangular form and polar form of complex number theory RT
(Hint: The value of x is represented by the fourth digit of your student ID number.)
