Ssm On the Rankine temperature scale, which is sometimes...

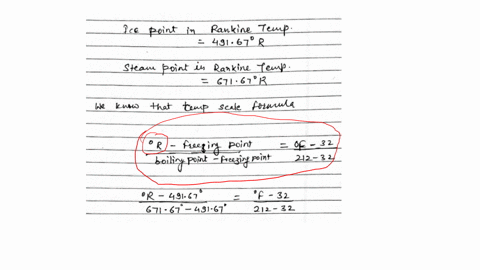

ssm On the Rankine temperature scale, which is sometimes used in engineering applications, the ice point is at $491.67^{\circ}{R}$ and the steam point is at $671.67^{\circ}{R}$. Determine a relationship (analogous to Equation 12.1) between the Rankine and Fahrenheit temperature scales.

Key Concepts

Interpolation Method

Interpolation is a mathematical method used to derive a linear relationship between two sets of data points. In the context of temperature conversion, it involves taking two well-defined temperature points on each scale (such as the freezing and boiling points) and using these to calculate the slope and intercept in the conversion formula. This method ensures that the conversion is consistent across the full range of temperatures.

Linear Conversion Formula

A linear conversion formula establishes a relationship between two temperature scales by using a straight-line equation of the form T? = aT? + b. This approach involves determining both a scaling factor (slope) and an offset (intercept) using two known fixed points on each scale, which is essential for accurately converting temperatures between the scales.

Temperature Scales

Temperature scales are systems that assign numeric values to the sensation of 'hot' and 'cold' by fixing reference points (such as freezing and boiling points of water) and dividing the intervals between these points into equal parts. They are fundamental in both scientific and engineering contexts because they allow for the quantitative analysis and comparison of thermal states.

Fahrenheit Temperature Scale

The Fahrenheit scale is a temperature scale widely used in certain countries for weather and daily temperature reporting. It sets specific reference points (like the freezing point of water at 32°F and the boiling point at 212°F) and provides a linear measure of temperature differences, which requires both scaling and offset when converting to other temperature scales.

Rankine Temperature Scale

The Rankine temperature scale is an absolute temperature scale used primarily in engineering applications, particularly in thermodynamics. Like the Kelvin scale (which is based on Celsius), Rankine is scaled such that its zero is absolute zero, but it uses the Fahrenheit interval. Its defined reference points, such as the ice and steam points, are critical for establishing a conversion relationship with the Fahrenheit scale.
