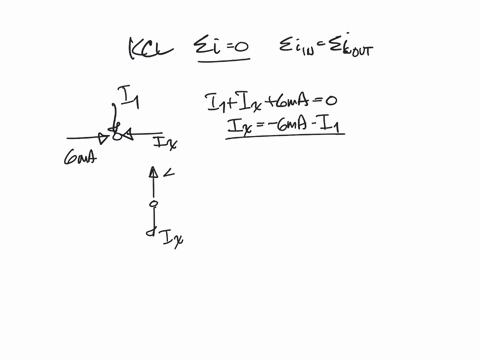

Find I1 in the network in Fig. P 3.3

Name: Problem 3, Chapter 3: Basic Engineering Circuit Analysis
Uploaded: 2021-04-23T05:12:07-08:00
Duration: 1 min 15 s
Channel: Khoobchandra Agrawal
Description: Find I1 in the network in Fig. P 3.3

Key Concepts

Ohm's Law

Ohm's Law is a fundamental principle in circuit theory that defines the relationship between voltage, current, and resistance. It states that the voltage across a resistor is directly proportional to the current flowing through it, with the proportionality constant being the resistance. This relationship is essential for calculating unknown values in a circuit once the other two quantities are known.

Kirchhoff's Voltage Law (KVL)

Kirchhoff's Voltage Law asserts that the sum of all electrical potential differences (voltages) around any closed loop in a circuit must equal zero. This concept is crucial for analyzing circuits by allowing one to write equations for each independent loop, ensuring that the voltages gained and lost balance out.

Kirchhoff's Current Law (KCL)

Kirchhoff's Current Law states that the total current entering a junction or node in a circuit must equal the total current leaving the node. This principle is used to set up equations based on the conservation of charge, making it a vital tool for analyzing the distribution of currents in different branches of a circuit.

Mesh Analysis

Mesh Analysis is a systematic method used to determine the currents flowing in the loops of a circuit. By applying Kirchhoff's Voltage Law around each mesh, one can set up a system of equations to solve for the unknown mesh currents. This technique is particularly useful in planar circuits where the network can be divided into mutually exclusive loops.
