An elevator accelerates upwards at a constant rate. Λuniform string of length L and mass m suppo

step 1 In this problem, it is given that an elevator is moving upward with a constant acceleration a. A

An elevator accelerates upwards at a constant rate. Λuniform...

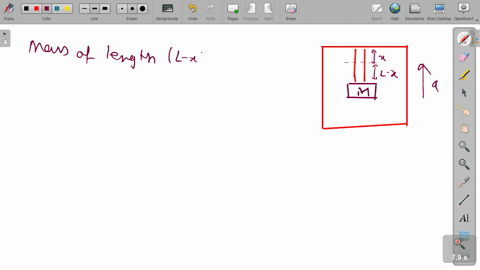

An elevator accelerates upwards at a constant rate. $\Lambda$ uniform string of length $L$ and mass $\mathrm{m}$ supports a small block of mass $M$ that hangs from the ceiling of the elevator. The tension at distance $l$ from the ceiling is 7 : The acceleration of the elevator is (a) $\frac{T}{M+m \frac{m l}{L}}-g$ (b) $\frac{T}{2 M \mid m \frac{m l}{L}} \mid g$ (c) $\frac{T}{M \times \frac{m l}{L}} g$ (d) $\frac{T}{2 M_{m \perp} \frac{m l}{L}} g$

An elevator accelerates upwards at a constant rate. $\Lambda$ uniform string of length $L$ and mass $\mathrm{m}$ supports a small block of mass $M$ that hangs from the ceiling of the elevator. The tension at distance $l$ from the ceiling is 7 : The acceleration of the elevator is
(a) $\frac{T}{M+m \frac{m l}{L}}-g$
(b) $\frac{T}{2 M \mid m \frac{m l}{L}} \mid g$
(c) $\frac{T}{M \times \frac{m l}{L}} g$
(d) $\frac{T}{2 M_{m \perp} \frac{m l}{L}} g$

Key Concepts

Newton's Second Law in Non-Inertial Frames

When analyzing systems in an accelerating reference frame such as an upward?accelerating elevator, Newton’s laws must account for pseudo-forces. In such frames the acceleration of the frame adds to gravitational acceleration, leading to an effective gravitational field. This concept is crucial to correctly set up the force balances for objects and systems within the frame.

Effective Gravitational Acceleration

In an accelerating elevator, the objects experience an effective gravitational acceleration that is the sum of the actual gravitational acceleration and the elevator’s acceleration. This effective gravity governs the apparent weight of objects and is key to understanding how forces such as tension in supporting strings are modified in non-inertial settings.

Tension in a Massive String

Unlike an idealized massless string where tension is uniform, a massive string has a tension gradient along its length. The tension at any point in the string is determined by the weight (or effective weight in a non-inertial frame) of the material and any attached masses hanging below that point. This concept is fundamentally important for analyzing systems where the string’s own mass cannot be neglected.

Mass Distribution in Extended Bodies

When dealing with objects that are uniformly distributed along a length, such as a uniform string, the mass per unit length becomes a key parameter. It allows the calculation of the weight contributed by any segment of the string. This understanding is essential in problems that involve integrating the contributions of different segments to determine the net force or tension at a point.
