Engineering Mechanics: Statics and Dynamics

R. C. Hibbeler

Chapter 21

Three-Dimensional Kinetics of a Rigid Body - all with Video Answers

Educators


Chapter Questions

01:56

Problem 1

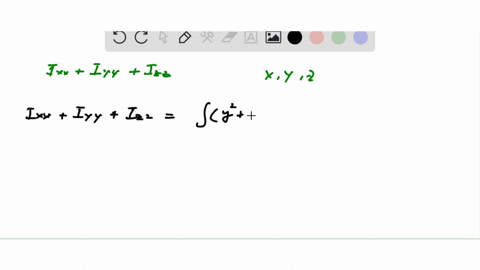

Show that the sum of the moments of inertia of a body, $I_{x x}+I_{y y}+I_{z z}$, is independent of the orientation of the $x, y, z$ axes and thus depends only on the location of the origin.

Shoukat Ali
Shoukat Ali
Other Schools
07:15

Problem 2

Determine the moment of inertia of the cone with respect to a vertical $\bar{y}$ axis passing through the cone's center of mass. What is the moment of inertia about a parallel axis $y^{\prime}$ that passes through the diameter of the base of the cone? The cone has a mass $m$

Shoukat Ali
Shoukat Ali
Other Schools
02:51

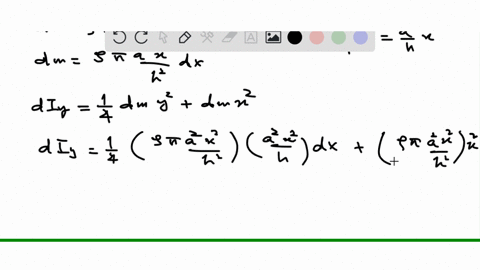

Problem 3

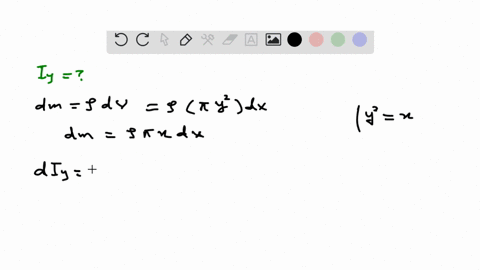

Determine moment of inertia $I_{y}$ of the solid formed by revolving the shaded arca around the $x$ axis. The density of the matcrial is $\rho=12$ slug $/ \mathrm{ft}^{3}$

Shoukat Ali
Shoukat Ali
Other Schools
04:07

Problem 4

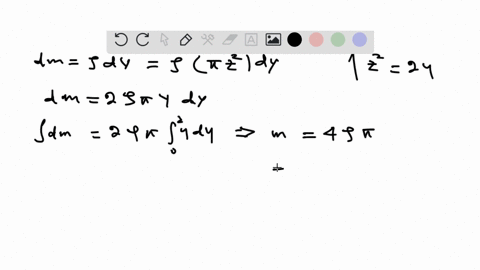

Determine the moments of inertia $I_{x}$ and $I_{y}$ of the paraboloid of revolution. The mass of the paraboloid is 20 slug.

Shoukat Ali
Shoukat Ali
Other Schools
04:06

Problem 5

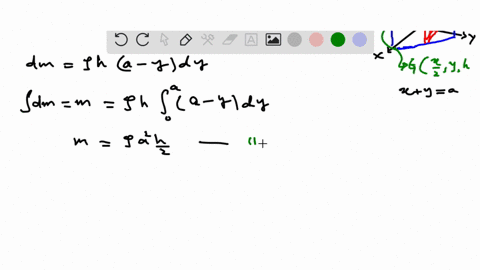

Determine by direct integration the product of incrtia $I_{y z}$ for the homogencous prism. The density of the material is $\rho .$ Express the result in terms of the total mass $m$ of the prism.

Shoukat Ali
Shoukat Ali
Other Schools
04:26

Problem 6

Dctermine by direct integration the product of incrtia $I_{x y}$ for the homogeneous prism. The density of the material is $\rho .$ Express the result in terms of the total mass $m$ of the prism.

Shoukat Ali
Shoukat Ali
Other Schools
04:17

Problem 7

Determine the product of inertia $I_{x y}$ of the object formed by revolving the shaded area about the line $x=5 \mathrm{ft}$ Express the result in terms of the density of the material, $\rho$

Shoukat Ali
Shoukat Ali
Other Schools
06:55

Problem 8

Determine the moment of inertia $I_{y}$ of the object formed by revolving the shaded area about the line $x=5 \mathrm{ft}$ Express the result in terms of the density of the material, $\rho$

Shoukat Ali
Shoukat Ali
Other Schools
05:12

Problem 9

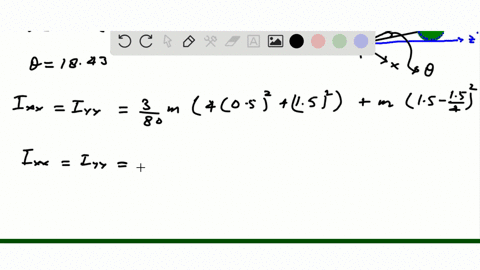

Determine the moment of inertia of the cone about the $z^{\prime}$ axis. The weight of the cone is 15 lb, the height is $h=1.5 \mathrm{ft}$ and the radius is $r=0.5 \mathrm{ft}$

Shoukat Ali
Shoukat Ali
Other Schools
08:29

Problem 10

Determine the radii of gyration $k_{x}$ and $k_{y}$ for the solid formed by revolving the shaded area about the $y$ axis. The density of the material is $\rho$

Shoukat Ali
Shoukat Ali
Other Schools
03:39

Problem 11

Determine the moment of incrtia of the cylinder with respect to the $a-a$ axis of the cylinder. The cylinder has a mass $m$

Shoukat Ali
Shoukat Ali
Other Schools
07:50

Problem 12

Determine the moment of inertia $I_{x x}$ of the composite plate assembly. The plates have a specific weight of $6 \mathrm{lb} / \mathrm{ft}^{2}$

Shoukat Ali
Shoukat Ali
Other Schools
01:03

Problem 13

Determine the product of inertia $I_{y z}$ of the composite plate assembly. The plates have a weight of $6 \mathrm{lb} / \mathrm{ft}^{2}$

Shoukat Ali
Shoukat Ali
Other Schools
05:43

Problem 14

Determine the products of inertia $I_{x y}, I_{y z},$ and $I_{x z},$ of the thin plate. The material has a density per unit area of $50 \mathrm{kg} / \mathrm{m}^{2}$

Shoukat Ali
Shoukat Ali
Other Schools
05:06

Problem 15

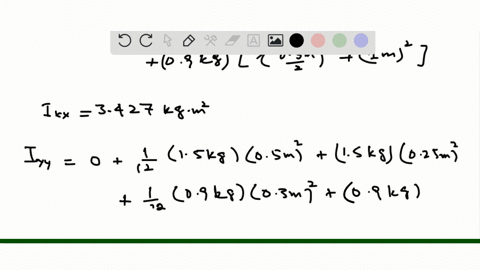

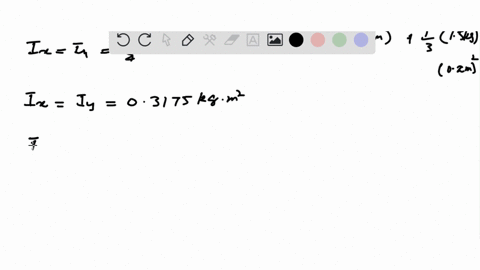

Determine the moment of inertia of both the $1.5-\mathrm{kg}$ rod and $4-\mathrm{kg}$ disk about the $z^{\prime}$ axis.

Shoukat Ali
Shoukat Ali
Other Schools
13:49

Problem 16

The bent rod has a mass of $3 \mathrm{kg} / \mathrm{m} .$ Determine the moment of inertia of the rod about the $O-a$ axis.

Shoukat Ali
Shoukat Ali
Other Schools
08:10

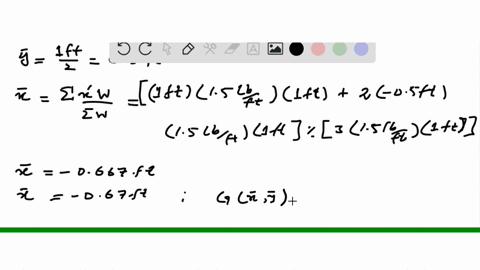

Problem 17

The bent rod has a weight of $1.5 \mathrm{lb} / \mathrm{ft}$. Locate the center of gravity $G(\bar{x}, \bar{y})$ and determine the principal moments of inertia $I_{x^{\prime}}, I_{y^{\prime}},$ and $I_{z^{\prime}}$ of the rod with respect to the $x^{\prime}, y^{\prime}, z^{\prime}$ axes.

Shoukat Ali
Shoukat Ali
Other Schools
06:58

Problem 18

Determine the moment of inertia of the rod-and-disk assembly about the $x$ axis. The disks each have a weight of 12 Ib. The two rods each have a weight of 4 lb, and their ends extend to the rims of the disks.

Shoukat Ali
Shoukat Ali
Other Schools
06:09

Problem 19

Determine the moment of inertia of the composite body about the aa axis. The cylinder weighs $20 \mathrm{lb}$, and each hemisphere weighs $10 \mathrm{Ib}$

Shoukat Ali
Shoukat Ali
Other Schools
04:23

Problem 20

Determine the moment of inertia of the disk about the axis of shaft $A B$. The disk has a mass of $15 \mathrm{kg}$

Shoukat Ali
Shoukat Ali
Other Schools
02:45

Problem 21

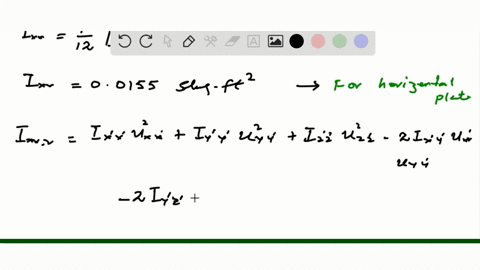

The thin plate has a weight of 5 lb and each of the four rods weighs 3 lb, Determine the moment of inertia of the assembly about the $z$ axis.

Shoukat Ali
Shoukat Ali
Other Schools
01:05

Problem 22

If a body contains no planes of symmetry, the principal moments of inertia can be determined mathematically. To show how this is done, consider the rigid body which is spinning with an angular velocity $\omega$, directed along one of its principal axes of inertia. If the principal moment of inertia about this axis is $I$, the angular momentum can be expressed as $\mathbf{H}=l \omega=I \omega_{x} \mathbf{i}+I \omega_{y} \mathbf{j}+I \omega_{z} \mathbf{k}$. The components of $\mathbf{H}$ may also be expressed by Eqs. $21-10$, where the inertia tensor is assumed to be known. Equate the $\mathbf{i}, \mathbf{j},$ and $\mathbf{k}$ components of both expressions for $\mathbf{H}$ and consider $\omega_{x}, \omega_{y},$ and $\omega_{z}$ to be unknown. The solution of these three equations is obtained provided the determinant of the cocfficicnts is zero. Show that this determinant, when expanded, yields the cubic equation
$$\begin{array}{l}
t^{3}-\left(I_{x x}+I_{y y}+I_{z z}\right) I^{2} \\
\quad+\left(I_{x x} I_{y y}+I_{y y} I_{x z}+I_{x z} I_{x x}-I_{x y}^{2}-I_{y z}^{2}-I_{z x}^{2}\right) I \\
\quad-\left(I_{x x} I_{y y} I_{z z}-2 I_{x y} I_{y z} I_{z x}-I_{x x} I_{y z}^{2}-I_{y y} I_{z x}^{2}-I_{z z} I_{x y}^{2}\right)=0
\end{array}$$

Raj Bala
Raj Bala
Numerade Educator
05:58

Problem 23

Show that if the angular momentum of a body is determined with respect to an arbitrary point $A,$ then $\mathbf{H}_{A}$ can be expressed by Eq. $21-9 .$ This requires substituting $\boldsymbol{\rho}_{A}=\boldsymbol{\rho}_{G}+\boldsymbol{\rho}_{G / A}$ into Eq. 21-6 and expanding, noting that $\int \boldsymbol{\rho}_{C} d m=0$ by definition of the mass center and
\[
\mathbf{v}_{G}=\mathbf{v}_{A}+\omega \times \boldsymbol{\rho}_{G / A}
\]

Shoukat Ali
Shoukat Ali
Other Schools
07:31

Problem 24

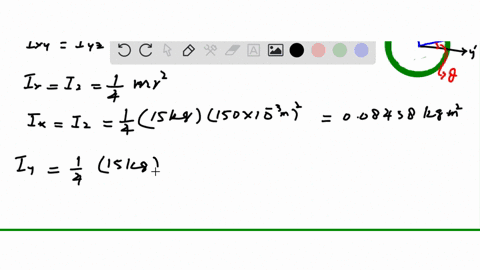

The $15-\mathrm{kg}$ circular disk spins about its axle with a constant angular velocity of $\omega_{1}=10 \mathrm{rad} / \mathrm{s} .$ Simultaneously, the yoke is rotating with a constant angular velocity of $\omega_{2}=5 \mathrm{rad} / \mathrm{s} .$ Determine the angular momentum of the disk about its center of mass $O,$ and its kinetic energy.

Shoukat Ali
Shoukat Ali
Other Schools
08:06

Problem 25

The large gear has a mass of $5 \mathrm{kg}$ and a radius of gyration of $k_{z}=75 \mathrm{mm} .$ Gears $B$ and $C$ each have a mass of $200 \mathrm{g}$ and a radius of gyration about the axis of their connecting shaft of $15 \mathrm{mm}$. If the gears are in mesh and $C$ has an angular velocity of $\omega_{c}=\{15 \mathrm{j}\} \mathrm{rad} / \mathrm{s},$ determine the total angular momentum for the system of three gears about point $A$.

Shoukat Ali
Shoukat Ali
Other Schools
05:28

Problem 26

The circular disk has a weight of 15 lb and is mounted on the shaft $A B$ at an angle of $45^{\circ}$ with the horizontal. Determine the angular velocity of the shaft when $t=3$ s if a constant torque $M=2$ lb $\cdot$ ft is applied to the shaft. The shaft is originally spinning al $\omega_{1}=8 \mathrm{rad} / \mathrm{s}$ when the torque is applied.

Shoukat Ali
Shoukat Ali
Other Schools
06:46

Problem 27

The circular disk has a weight of 15 lb and is mounted on the shaft $A B$ at an angle of $45^{\circ}$ with the horizontal. Determine the angular velocity of the shaft when $t=2 \mathrm{s}$ if a torque $M=\left(4 e^{0.1 t}\right) \mathrm{lb} \cdot \mathrm{ft},$ where $t$ is in seconds, is applied to the shaft. The shaft is originally spinning at $\omega_{1}=8 \mathrm{rad} / \mathrm{s}$ when the torque is applied.

Shoukat Ali
Shoukat Ali
Other Schools
10:31

Problem 28

The rod assembly is supported at $G$ by a ball-and-socket joint. Each segment has a mass of $0.5 \mathrm{kg} / \mathrm{m}$ If the assembly is originally at rest and an impulse of $\mathbf{I}=\{-8 \mathbf{k}\} N \cdot \mathrm{s}$ is applied al $D,$ determine the angular velocity of the assembly just after the impact.

Shoukat Ali
Shoukat Ali
Other Schools
05:43

Problem 29

The $4-16$ rod $A B$ is attached to the 1 -lb collar at $A$ and a $2-1 b \operatorname{link} B C$ using ball-and-socket joints. If the rod is released from rest in the position shown, determine the angular velocity of the link after it has rotated $180^{\circ}$

Shoukat Ali
Shoukat Ali
Other Schools
03:41

Problem 30

The rod weighs $3 \mathrm{lb} / \mathrm{ft}$ and is suspended from parallel cords at $A$ and $B$. If the rod has an angular velocity of $2 \mathrm{rad} / \mathrm{s}$ about the $z$ axis at the instant shown, determine how high the center of the rod rises at the instant the rod momentarily stops swinging.

Shoukat Ali
Shoukat Ali
Other Schools
10:18

Problem 31

The $4-16$ rod $A B$ is attached to the rod $B C$ and collar $A$ using ball-and-socket joints. If $B C$ has a constant angular velocity of $2 \mathrm{rad} / \mathrm{s}$, determine the kinetic energy of $A B$ when it is in the position shown. Assume the angular velocity of $A B$ is directed perpendicular to the axis of $A B$

Shoukat Ali
Shoukat Ali
Other Schools
07:44

Problem 32

The $2-\mathrm{kg}$ thin disk is connected to the slender rod which is fixed to the ball-and-socket joint at $A$. If it is released from rest in the position shown, determine the spin of the disk about the rod when the disk reaches its lowest position. Neglect the mass of the rod. The disk rolls without slipping.

Shoukat Ali
Shoukat Ali
Other Schools
05:14

Problem 33

The 20 -kg sphere rotates about the axle with a constant angular velocity of $\omega_{\mathrm{s}}=60 \mathrm{rad} / \mathrm{s}$. If shaft $A B$ is subjected to a torque of $M=50 \mathrm{N} \cdot \mathrm{m}$, causing it to rotate, determine the value of $\omega_{p}$ after the shaft has turned $90^{\circ}$ from the position shown. Initially, $\omega_{p}=0 .$ Neglect the mass of arm $C D E$

Shoukat Ali
Shoukat Ali
Other Schools
07:32

Problem 34

The 200 -kg satellite has its center of mass at point $G .$ Its radii of gyration about the $z^{\prime}, x^{\prime}, y^{\prime}$ axes are $k_{z^{\prime}}=300 \mathrm{mm}, k_{x^{\prime}}=k_{y^{\prime}}=500 \mathrm{mm},$ respectively. At the instant shown, the satellite rotates about the $x^{\prime}, y^{\prime},$ and $z^{\prime}$ axes with the angular velocity shown, and its center of mass $G$ has a velocity of $\mathbf{v}_{G}=\{-250 \mathbf{i}+200 \mathbf{j}+120 \mathbf{k}\} \mathrm{m} / \mathrm{s}$ Determine the angular momentum of the satellite about point $A$ at this instant.

Shoukat Ali
Shoukat Ali
Other Schools
05:03

Problem 35

The $200-\mathrm{kg}$ satellite has its center of mass at point $G$ Its radii of gyration about the $z^{\prime}, x^{\prime}, y^{\prime}$ axes are $k_{z^{\prime}}=300 \mathrm{mm}$ $k_{x^{\prime}}=k_{y^{\prime}}=500 \mathrm{mm},$ respectively. At the instant shown, the satcllite rotates about the $x^{\prime}, y^{\prime},$ and $z^{\prime}$ axes with the angular velocity shown, and its center of mass $G$ has a velocity of $\mathbf{v}_{G}=\{-250 \mathbf{i}+200 \mathbf{j}+120 \mathbf{k}\} \mathrm{m} / \mathrm{s} .$ Determine the kinetic energy of the satellite at this instant.

Shoukat Ali
Shoukat Ali
Other Schools
05:59

Problem 36

The 15 -kg rectangular plate is free to rotate about the $y$ axis because of the bearing supports at $A$ and $B$. When the plate is balanced in the vertical plane, a 3 -g bullet is fired into it, perpendicular to its surface, with a velocity $\mathbf{v}=\{-2000 \mathbf{i}\} \mathrm{m} / \mathrm{s} .$ Compute the angular velocity of the plate at the instant it has rotated $180^{\circ} .$ If the bullet strikes corner $D$ with the same velocity $\mathbf{v}$, instead of at $C$, does the angular velocity remain the same? Why or why not?

Shoukat Ali
Shoukat Ali
Other Schools
07:39

Problem 37

The $5-\mathrm{kg}$ thin plate is suspended at $O$ using a balland-socket joint. It is rotating with a constant angular velocity $\omega=\{2 \mathbf{k}\}$ rad/s when the corner $A$ strikes the hook at $S$ which provides a permanent connection. Determine the angular velocity of the plate immediately after impact.

Shoukat Ali
Shoukat Ali
Other Schools
05:16

Problem 38

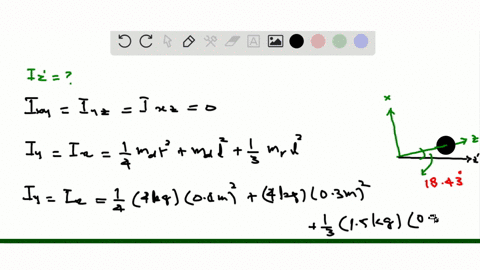

Determine the kinetic energy of the 7 -kg disk and 1.5-kg rod when the assembly is rotating about the zaxis at $\omega=5 \mathrm{rad} / \mathrm{s}$

Shoukat Ali
Shoukat Ali
Other Schools
05:41

Problem 39

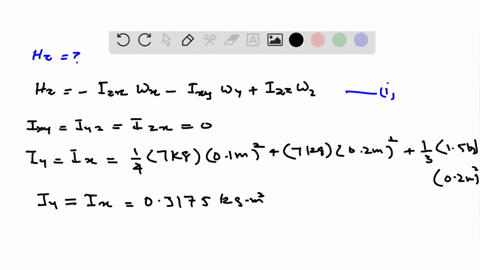

Determine the angular momentum $\mathbf{H}_{z}$ of the $7-\mathrm{kg}$ disk and 1.5 -kg rod when the assembly is rotating about the $z$ axis at $\omega=5 \mathrm{rad} / \mathrm{s}$

Shoukat Ali
Shoukat Ali
Other Schools
02:09

Problem 40

Derive the scalar form of the rotational equation of motion about the $x$ axis if $\Omega \neq \omega$ and the moments and products of inertia of the body are not constant with respect to time.

Ajay Singhal
Ajay Singhal
Numerade Educator
02:09

Problem 41

Derive the scalar form of the rotational equation of motion about the $x$ axis if $\Omega \neq \omega$ and the moments and products of inertia of the body are constant with respect to time.

Ajay Singhal
Ajay Singhal
Numerade Educator
12:17

Problem 42

Derive the Euler equations of motion for $\Omega \neq \omega$ i.e., Eqs. 21-26.

Averell Hause
Averell Hause
Carnegie Mellon University
04:55

Problem 43

The $4-16$ bar rests along the smooth corners of an open box. At the instant shown, the box has a velocity $\mathbf{v}=\{3 \mathbf{j}\} \mathrm{ft} / \mathrm{s}$ and an acceleration $\mathbf{a}=\{-6 \mathbf{j}\} \mathrm{ft} / \mathrm{s}^{2}$ Determinc the $x, y, z$ componcnts of force which the corners exert on the bar.

Shoukat Ali
Shoukat Ali
Other Schools
06:18

Problem 44

The uniform plate has a mass of $m=2 \mathrm{kg}$ and is given a rotation of $\omega=4 \mathrm{rad} / \mathrm{s}$ about its bearings at $A$ and $B .$ If $a=0.2 \mathrm{m}$ and $c=0.3 \mathrm{m},$ determine the vertical reactions at the instant shown. Use the $x, y, z$ axes shown and note that
$$I_{x x}=-\left(\frac{m a c}{12}\right)\left(\frac{c^{2}-a^{2}}{c^{2}+a^{2}}\right)$$

Shoukat Ali
Shoukat Ali
Other Schools
09:59

Problem 45

If the shaft $A B$ is rotating with a constant angular velocity of $\omega=30 \mathrm{rad} / \mathrm{s}$, determine the $X, Y, Z$ components of reaction at the thrust bearing $A$ and journal bearing $B$ at the instant shown. The disk has a weight of 15 lb. Neglect the weight of the shaft $A B$

Shoukat Ali
Shoukat Ali
Other Schools
10:56

Problem 46

The assembly is supported by journal bearings at $A$ and $B,$ which develop only $y$ and $z$ force reactions on the shaft. If the shaft is rotating in the direction shownat $\omega=\{2 \mathbf{i}\}$ rad/s determine the reactions at the bearings when the assembly is in the position shown. Also, what is the shaft's angular acceleration? The mass per unit length of each rod is $5 \mathrm{kg} / \mathrm{m}$

Shoukat Ali
Shoukat Ali
Other Schools
10:27

Problem 47

The assembly is supported by journal bearings at $A$ and $B,$ which develop only $y$ and $z$ force reactions on the shaft. If the shaft $A$ is subjected to a couple moment $\mathbf{M}=\{40 \mathrm{i}\} \mathrm{N} \cdot \mathrm{m},$ and at the instant shown the shaft has an angular velocity of $\omega=\{2 \mathbf{i}\}$ rad/s, determine the reactions at the bearings of the assembly at this instant. Also, what is the shaft's angular acceleration? The mass per unit length of each rod is $5 \mathrm{kg} / \mathrm{m}$

Shoukat Ali
Shoukat Ali
Other Schools
08:20

Problem 48

The man sits on a swivel chair which is rotating with a constant angular velocity of 3 rad/s. He holds the uniform $5-16$ rod $A B$ horizontal. He suddenly gives it an angular acceleration of $2 \mathrm{rad} / \mathrm{s}^{2},$ measured relative to him, as shown. Determine the required force and moment components at the grip, $A$, necessary to do this. Establish axes at the rod's center of mass $G,$ with $+z$ upward, and $+y$ directed along the axis of the rod toward $A$

Shoukat Ali
Shoukat Ali
Other Schools
07:22

Problem 49

The rod assembly is supported by a ball-and-sockct joint at $C$ and a journal bearing at $D,$ which develops only $x$ and $y$ force reactions. The rods have a mass of $0.75 \mathrm{kg} / \mathrm{m}$ Determine the angular acceleration of the rods and the components of reaction at the supports at the instant $\omega=8 \mathrm{rad} / \mathrm{s}$ as shown.

Shoukat Ali
Shoukat Ali
Other Schools
05:53

Problem 50

The bent uniform rod $A C D$ has a weight of $5 \mathrm{lb} / \mathrm{ft}$ and is supported at $A$ by a pin and at $B$ by a cord. If the vertical shaft rotates with a constant angular velocity $\omega=20 \mathrm{rad} / \mathrm{s},$ determine the $x, y, z$ components of force and moment developed at $A$ and the tension in the cord.

Shoukat Ali
Shoukat Ali
Other Schools
06:34

Problem 51

The uniform hatch door, having a mass of $15 \mathrm{kg}$ and a mass center at $G,$ is supported in the horizontal plane by bearings at $A$ and $B$. If a vertical force $F=300 \mathrm{N}$ is applied to the door as shown, determine the components of reaction at the bearings and the angular acceleration of the door. The bearing at $A$ will resist a component of force in the $y$ direction, whereas the bearing at $B$ will not. For the calculation, assume the door to be a thin plate and neglect the size of each bearing. The door is originally at rest.

Shoukat Ali
Shoukat Ali
Other Schools
03:08

Problem 52

The $5-\mathrm{kg}$ circular disk is mounted off center on a shaft which is supported by bearings at $A$ and $B$. If the shaft is rotating at a constant rate of $\omega=10 \mathrm{rad} / \mathrm{s}$, determine the vertical reactions at the bearings when the disk is in the position shown.

Shoukat Ali
Shoukat Ali
Other Schools
07:24

Problem 53

Two uniform rods, each having a weight of $10 \mathrm{lb}$ are pin connected to the edge of a rotating disk. If the disk has a constant angular velocity $\omega_{D}=4 \mathrm{rad} / \mathrm{s},$ determine the angle $\theta$ made by each rod during the motion, and the components of the force and moment developed at the pin $A .$ Suggestion: Use the $x, y, z$ axes oricnted as shown.

Shoukat Ali
Shoukat Ali
Other Schools
07:57

Problem 54

The $10-\mathrm{kg}$ disk turns around the shaft $A B,$ while the shaft rotates about $B C$ at a constant rate of $\omega_{x}=5 \mathrm{rad} / \mathrm{s}$ If the disk does not slip, determine the normal and frictional force it exerts on the ground. Neglect the mass of shaft $A B$

Shoukat Ali
Shoukat Ali
Other Schools
05:14

Problem 55

The $20-\mathrm{kg}$ disk is spinning on its axle at $\omega_{\mathrm{s}}=30 \mathrm{rad} / \mathrm{s}, \quad$ while the forked rod is turning at $\omega_{1}=6 \mathrm{rad} / \mathrm{s} .$ Determine the $x$ and $z$ moment components the axle exerts on the disk during the motion.

Shoukat Ali
Shoukat Ali
Other Schools
06:11

Problem 56

The $4-\mathrm{kg}$ slender rod $A B$ is pinned at $A$ and held at $B$ by a cord. The axle $C D$ is supported at its ends by balland-socket joints and is rotating with a constant angular velocity of 2 rad/s. Determine the tension developed in the cord and the magnitude of force developed at the pin $A$

Shoukat Ali
Shoukat Ali
Other Schools
08:42

Problem 57

The blades of a wind turbine spin about the shaft $S$ with a constant angular speed of $\omega_{3},$ whilc the frame precesses about the vertical axis with a constant angular speed of $\omega_{p}$ Determine the $x, y,$ and $z$ components of moment that the shaft exerts on the blades as a function of $\theta .$ Consider each blade as a slender rod of mass $m$ and length $l$

Shoukat Ali
Shoukat Ali
Other Schools
08:27

Problem 58

The 15 -lb cylinder is rotating about shaft $A B$ with a constant angular speed $\omega=4 \mathrm{rad} / \mathrm{s}$. If the supporting shaft at $C,$ initially at rest, is given an angular acceleration $\alpha_{C}=12 \mathrm{rad} / \mathrm{s}^{2},$ determine the components of reaction at the bearings $A$ and $B$. The bearing at $A$ cannot support a force component along the $x$ axis, whereas the bearing at $B$ does.

Shoukat Ali
Shoukat Ali
Other Schools
06:06

Problem 59

The thin rod has a mass of $0.8 \mathrm{kg}$ and a total length of $150 \mathrm{mm}$. It is rotating about its midpoint at a constant rate $\dot{\theta}=6 \mathrm{rad} / \mathrm{s},$ while the table to which its axle $A$ is fastened is rotating at 2 rad/s. Determine the $x, y, z$ moment components which the axle exerts on the rod when the rod is in any position $\theta$

Shoukat Ali
Shoukat Ali
Other Schools
10:07

Problem 60

Show that the angular velocity of a body, in terms of Euler angles $\phi, \theta,$ and $\psi,$ can be expressed as
\[
\omega=(\dot{\phi} \sin \theta \sin \psi+\dot{\theta} \cos \psi) \mathrm{i}+(\phi \sin \theta \cos \psi-\theta \sin \psi) \mathbf{j}+
\]
$(\dot{\phi} \cos \theta+\dot{\psi}) \mathbf{k},$ where $\mathbf{i}, \mathbf{j},$ and $\mathbf{k}$ are directed along the $x, y, z$
axes as shown in Fig. $21-15 d

Sarah Mccrumb
Sarah Mccrumb
Numerade Educator
03:29

Problem 61

A thin rod is initially coincident with the $Z$ axis when it is given three rotations defincd by the Eulcr angles $\phi=30^{\circ}, \theta=45^{\circ},$ and $\psi=60^{\circ} .$ If these rotations are given in the order stated, determine the coordinate direction angles $\alpha, \beta, \gamma$ of the axis of the rod with respect to the $X, Y$ and $Z$ axes. Are these directions the same for any order of the rotations? Why?

Shoukat Ali
Shoukat Ali
Other Schools
01:53

Problem 62

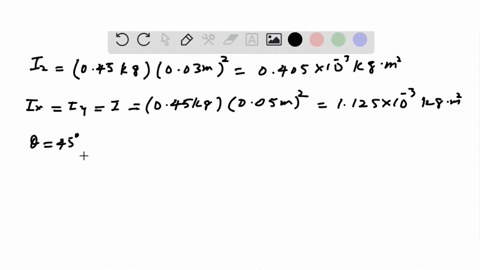

The gyroscope consists of a uniform 450 -g disk $D$ which is attached to the axle $A B$ of negligible mass. The supporting frame has a mass of $180 \mathrm{g}$ and a center of mass at $G .$ If the disk is rotating about the axle at $\omega_{D}=90 \mathrm{rad} / \mathrm{s}$ determine the constant angular velocity $\omega_{p}$ at which the frame precesses about the pivot point $O .$ The frame moves in the horizontal plane.

Shoukat Ali
Shoukat Ali
Other Schools
01:39

Problem 63

The toy gyroscope consists of a rotor $R$ which is attached to the frame of negligible mass. If it is observed that the frame is precessing about the pivot point $O$ at $\omega_{p}=2 \mathrm{rad} / \mathrm{s},$ determine the angular velocity $\omega_{R}$ of the rotor. The stem $O A$ moves in the horizontal plane. The rotor has a mass of $200 \mathrm{g}$ and a radius of gyration $k_{O A}=20 \mathrm{mm}$ about $O A$

Shoukat Ali
Shoukat Ali
Other Schools
03:22

Problem 64

The top consists of a thin disk that has a weight of 8 lb and a radius of $0.3 \mathrm{ft}$. The rod has a negligible mass and a length of $0.5 \mathrm{ft}$. If the top is spinning with an angular velocity $\omega_{s}=300 \mathrm{rad} / \mathrm{s},$ determine the steady-state precessional angular velocity $\omega_{p}$ of the rod when $\theta=40^{\circ}$

Shoukat Ali
Shoukat Ali
Other Schools
01:34

Problem 65

Solve Prob. $21-64$ when $\theta=90^{\circ}$

Shoukat Ali
Shoukat Ali
Other Schools
02:47

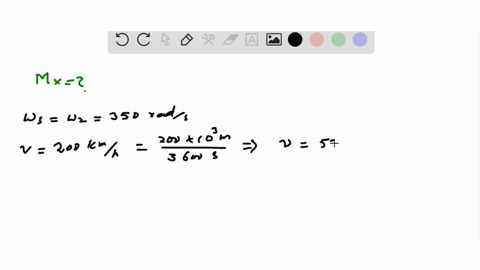

Problem 66

The propeller on a single-engine airplane has a mass of $15 \mathrm{kg}$ and a centroidal radius of gyration of $0.3 \mathrm{m}$ computed about the axis of spin. When vicwed from the front of the airplane, the propeller is turning clockwise at 350 rad/s about the spin axis. If the airplane enters a vertical curve having a radius of $80 \mathrm{m}$ and is traveling at $200 \mathrm{km} / \mathrm{h}$ determine the gyroscopic bending moment which the propeller exerts on the bearings of the engine when the airplane is in its lowest position.

Shoukat Ali
Shoukat Ali
Other Schools
02:42

Problem 67

A wheel of mass $m$ and radius $r$ rolls with constant spin $\omega$ about a circular path having a radius $a$. If the angle of inclination is $\theta,$ determine the rate of precession. Treat the whecl as a thin ring. No slipping occurs.

Manish Jain
Manish Jain
Numerade Educator
03:23

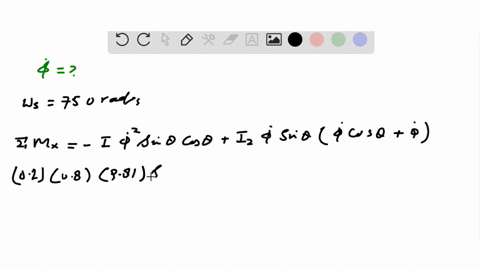

Problem 68

The conical top has a mass of $0.8 \mathrm{kg},$ and the moments of inertia are $I_{x}=I_{y}=3.5\left(10^{-3}\right) \mathrm{kg} \cdot \mathrm{m}^{2}$ and $I_{z}=0.8\left(10^{-3}\right) \mathrm{kg} \cdot \mathrm{m}^{2} .$ If it spins freely in the ball-and socket joint at $A$ with an angular velocity $\omega_{s}=750 \mathrm{rad} / \mathrm{s},$ compute the precession of the top about the axis of the shaft $A B$

Shoukat Ali
Shoukat Ali
Other Schools
02:50

Problem 69

The top has a mass of $90 \mathrm{g}$, a center of mass at $G$ and a radius of gyration $k=18 \mathrm{mm}$ about its axis of symmetry. About any transverse axis acting through point 0 the radius of gyration is $k_{t}=35 \mathrm{mm} .$ If the top is connected to a ball-and-socket joint at $O$ and the preccssion is $\omega_{p}=0.5 \mathrm{rad} / \mathrm{s},$ detcrmine the spin $\omega_{s}$

Shoukat Ali
Shoukat Ali
Other Schools
03:55

Problem 70

The $1-16$ top has a center of gravity at point $G .$ If it spins about its axis of symmetry and precesses about the vertical axis at constant rates of $\omega_{s}=60 \mathrm{rad} / \mathrm{s}$ and $\omega_{p}=10 \mathrm{rad} / \mathrm{s},$ respectively, determine the steady state angle $\theta$. The radius of gyration of the top about the $z$ axis is $k_{z}=1$ in., and about the $x$ and $y$ axes it is $k_{x}=k_{y}=4$ in.

Shoukat Ali
Shoukat Ali
Other Schools
06:29

Problem 71

The space capsule has a mass of $2 \mathrm{Mg}$, center of mass at $G,$ and radii of gyration about its axis of symmetry $\left(z \text { axis ) and its transverse axes }\left(x \text { or } y \text { axis) of } k_{z}=2.75 \mathrm{m}\right.\right.$ and $k_{\mathrm{r}}=k_{\mathrm{y}}=5.5 \mathrm{m},$ respectively. If the capsule has the angular velocity shown, determine its precession $\dot{\phi}$ and spin $\psi$. Indicate whether the precession is regular or retrograde. Also, draw the space cone and body cone for the motion.

Shoukat Ali
Shoukat Ali
Other Schools
03:23

Problem 72

The 0.25 kg football is spinning at $\omega_{z}=15 \mathrm{rad} / \mathrm{s}$ as shown. If $\theta=40^{\circ},$ determine the precession about the $z$ axis. The radius of gyration about the spin axis is $k_{z}=0.042 \mathrm{m},$ and about a transverse axis is $k_{y}=0.13 \mathrm{m}$

Shoukat Ali
Shoukat Ali
Other Schools
02:00

Problem 73

The projectile shown is subjected to torque-free motion. The transverse and axial moments of inertia are $I$ and $I_{z},$ respectively. If $\theta$ represents the angle between the precessional axis $Z$ and the axis of symmetry $z,$ and $\beta$ is the angle between the angular velocity $\omega$ and the $z$ axis, show that $\beta$ and $\theta$ are related by the cquation $\tan \theta=\left(I / I_{z}\right) \tan \beta$

Shoukat Ali
Shoukat Ali
Other Schools
02:44

Problem 74

The radius of gyration about an axis passing through the axis of symmetry of the $1.6-\mathrm{Mg}$ space capsule is $k_{z}=1.2 \mathrm{m}$ and about any transverse axis passing through the center of mass $G, k_{f}=1.8 \mathrm{m}$. If the capsule has a known steady-state precession of two revolutions per hour about the $Z$ axis, determine the rate of spin about the $z$ axis.

Shoukat Ali
Shoukat Ali
Other Schools
04:23

Problem 75

The rocket has a mass of $4 \mathrm{Mg}$ and radii of gyration $k_{z}=0.85 \mathrm{m}$ and $k_{x}=k_{y}=2.3 \mathrm{m} .$ It is initially spinning about the $z$ axis at $\omega_{z}=0.05 \mathrm{rad} / \mathrm{s}$ when a meteoroid $M$ strikes it at $A$ and creates an impulse $\mathbf{I}=\{300 \mathrm{i}\} \mathrm{N} \cdot \mathrm{s}$ Determine the axis of precession after the impact.

Shoukat Ali
Shoukat Ali
Other Schools
04:34

Problem 76

The football has a mass of $450 \mathrm{g}$ and radii of gyration about its axis of symmetry $(z \text { axis ) and its transverse axes }(x\text { or }$ $y$ axis) of $k_{2}=30 \mathrm{mm}$ and $k_{x}=k_{y}=50 \mathrm{mm},$ respectively. If the football has an angular momentum of $H_{G}=0.02 \mathrm{kg} \cdot \mathrm{m}^{2} / \mathrm{s}$ determine its precession $\dot{\phi}$ and $\operatorname{spin} \psi .$ Also, find the angle $\beta$ that the angular velocity vector makes with the $z$ axis.

Shoukat Ali
Shoukat Ali
Other Schools
02:51

Problem 77

The satellite has a mass of $1.8 \mathrm{Mg}$, and about axes passing through the mass center $G$ the axial and transverse radii of gyration are $k_{z}=0.8 \mathrm{m}$ and $k_{t}=1.2 \mathrm{m},$ respectively. If it is spinning at $\omega_{s}=6 \mathrm{rad} / \mathrm{s}$ when it is launched, determine its angular momentum. Precession occurs about the $Z$ axis.

Shoukat Ali
Shoukat Ali
Other Schools
03:40

Problem 78

The radius of gyration about an axis passing through the axis of symmetry of the 1.2 -Mg satellite is $k_{z}=1.4 \mathrm{m},$ and about any transverse axis passing through the center of mass $G, k_{t}=2.20 \mathrm{m} .$ If the satellite has a known spin of 2700 rev / $\mathrm{h}$ about the $z$ axis, determine the steady-state precession about the $z$ axis.

Shoukat Ali
Shoukat Ali
Other Schools
