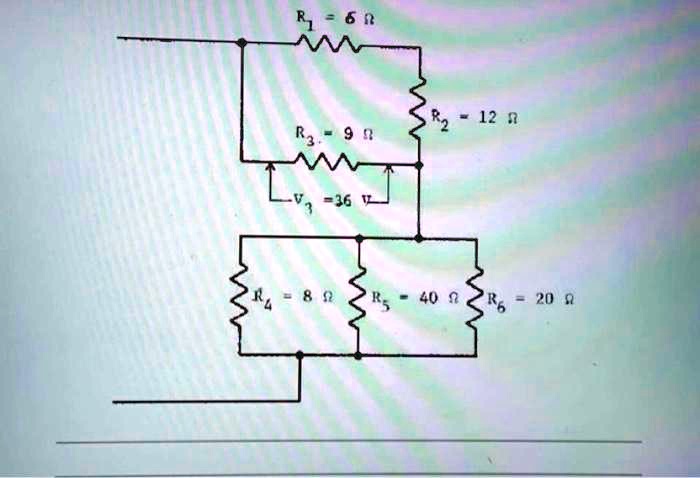

R? = 6 ? R? = 12 ? R? = 9 ? V? = 36 V R? = 8 ? R? = 40 ? R? = 20 ?
Added by Rita C.
Close
Step 1
Given that the resistors are connected in series, the total resistance is the sum of the individual resistances. Rt = R1 + R2 + R3 Show more…
Show all steps
Your feedback will help us improve your experience
Taniya Khandelwal and 97 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Prabhu R.
n resistors each of resistance R are connected in parallel in an electric circuit. What is the total effective resistance of the circuit ?
Meera D.
For the circuit below, calculate: - The total resistance, Rt - The total current through the power supply - The current through each resistor - The voltage drop across R
