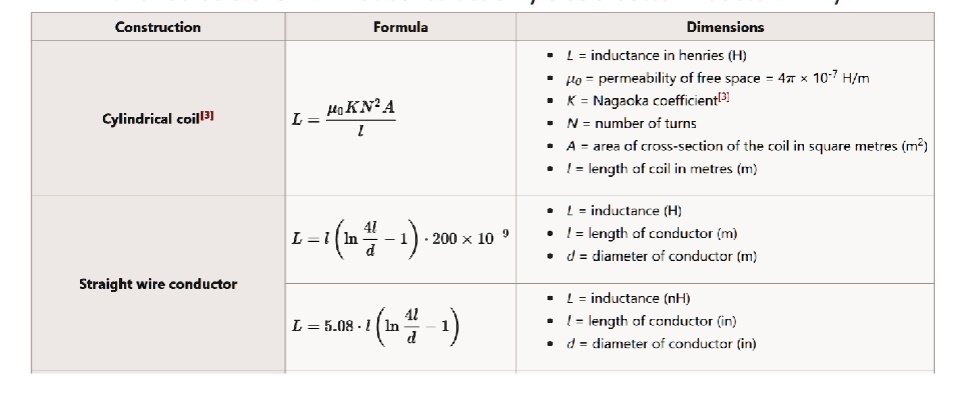

Construction Formula Cylindrical coil [3] $L = \frac{\mu_0 K N^2 A}{l}$ Straight wire conductor $L = l \left( ln \frac{4l}{d} - 1 \right) \cdot 200 \times 10^{-9}$ $L = 5.08 \cdot l \left( ln \frac{4l}{d} - 1 \right)$ Dimensions • L = inductance in henries (H) • $\mu_0$ = permeability of free space = $4 \pi \times 10^{-7}$ H/m • K = Nagaoka coefficient [3] • N = number of turns • A = area of cross-section of the coil in square metres (m²) • l = length of coil in metres (m) • L = inductance (H) • l = length of conductor (m) • d = diameter of conductor (m) • L = inductance (nH) • l = length of conductor (in) • d = diameter of conductor (in)
Added by Chad S.
Close
Step 1
Step 1: Read the text carefully to identify any errors or issues. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 92 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Madhur L.
Answer the following questions: 1. A 1.0 A current passes through a 10 mH inductor coil. What potential difference is induced across the coil if the current drops to zero in 5.0 μs? 2. A 1.0 A current passes through an inductor coil connected across a 2000 V supply. What is the inductance of the coil if the current drops to zero in 5.0 μs? 3. A 1 H inductor carries 10 A, and a 10 H inductor carries 1 A. Which inductor contains more stored energy? Explain your answer. 4. In a particular circuit, assume that ε = 12V, R = 40 Ω, and L = 5 mH. How much energy is stored in the inductor's magnetic field when the current reaches its maximum steady-state value?
The inductor arrangement of Fig. $30-61,$ with $L_{1}=30.0 \mathrm{mH}, L_{2}=$ $50.0 \mathrm{mH}, L_{3}=20.0 \mathrm{mH},$ and $L_{4}=$ $15.0 \mathrm{mH}, \quad \mathrm{is}$ to be connected to a a varying current source. What is the equivalent inductance of the arrangement? (First see Problems 47 and $48 . )$
