The equivalent resistance between points A and B is: (A) 32.5 ? (B) 22.5 ? (C) 2.5 ? (D) 45.5 ?
Added by Jordi W.
Close
Step 1
We have three resistors: R1, R2, and R3. Show more…
Show all steps
Your feedback will help us improve your experience
Mahendra Rathore and 61 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
What is the equivalent resistance between points A and B

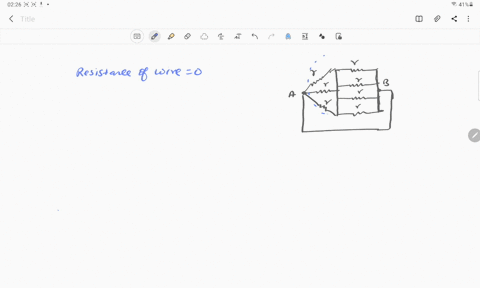

The equivalent resistance between points $A$ and $B$ is : (a) 0 (b) $\frac{7}{12} r$ (c) $7 r$ (d) $\frac{3 r}{4}$
