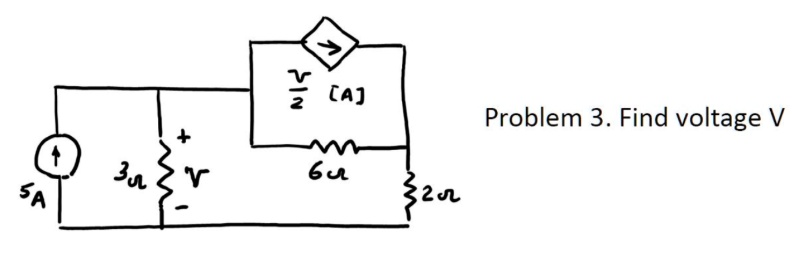

Problem 3. Find voltage V 5A 3Ω V V/2 [A] 6Ω 2Ω
Added by Michael B.
Close
Step 1
Let the bottom wire be the reference node (0V). Let the node at the top left, where the 5A current source, 3Ω resistor, and the rest of the circuit connect, be node A. Let the node between the 6Ω resistor and the 2Ω resistor be node B. The voltage V is across the Show more…
Show all steps
Your feedback will help us improve your experience
Vishal Gupta and 70 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

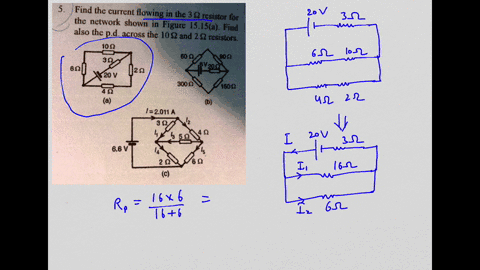

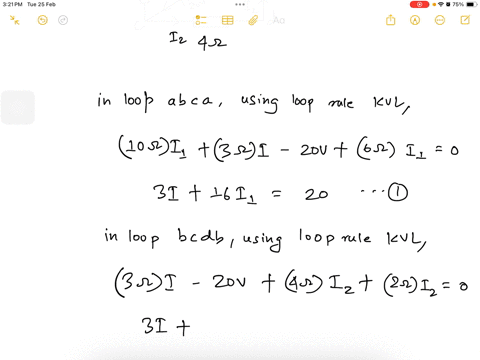

5. Find the current flowing in the 3 Ω resistor for the network shown in Figure 15.15(a). Find also the p.d. across the 10 Ω and 2 Ω resistors.
