00:01
In this question, here they give in the one question.
00:07
So which one is related to the construction? so this construction includes the or gate and gate.
00:15
And here also we are using the inverted.
00:18
So let come to the here we have to find out that is we have to draw the construction for or comma and gates.
00:38
And also we are using here the.
00:40
Invertards.
00:48

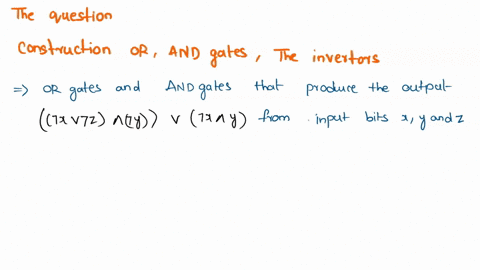

So before that, before going to the construction from the given information that is implies that, that is o are gates and and gates which are combined and that produce the output.
01:18
That is here 7x which is union 7 z and which is intersect 7 y.
01:33
So union 7 x intersect y here, which is from the inputs, input bits, that is x comma y comma and g.
01:54
So these are the inputs which are given for the construction.
01:59
After that, from these input bits by using the inverted or gate and gate, they can combine each other.
02:08
They can produce the output as a here it is so let's see the construction so let us take the input that is x comma y comma z so this is for x input and this is for y input and finally the last one that is z input so here we have to take that three inputs so this is z input so here is the construction...
