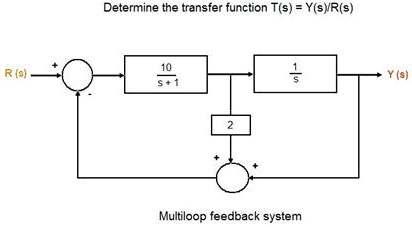

Determine the transfer function $T(s) = \frac{Y(s)}{R(s)}$ + R (s) $\frac{10}{s+1}$ + 2 + $\frac{1}{s}$ S Y (s) Multiloop feedback system
Added by Jacob L.
Close
Step 1
We have a transfer function from the input R(s) to the output Y(s), which we'll call G(s). We also have a transfer function from the output Y(s) to the input R(s), which we'll call H(s). The overall transfer function of the system can be found using the Show more…
Show all steps
Your feedback will help us improve your experience
Timothy James and 58 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Suppose that the transfer function for a linear system is s = 1/(s^2 + 4). Determine F(s), Y(s), and yt.
Madhur L.
Question 3: Given the transfer function of a system, we need to determine y(t) when r(t) is a unit step input.
Sri K.
The transfer function of a system is \[ H(s)=\frac{s^{2}}{3 s+1} \] Find the output when the system has an input of $4 e^{-t / 3} u(t)$.
