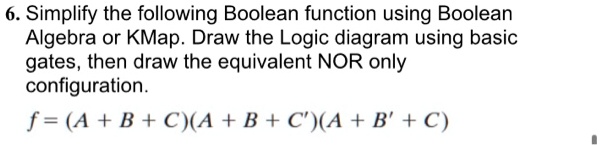

6. Simplify the following Boolean function using Boolean Algebra or KMap. Draw the Logic diagram using basic gates, then draw the equivalent NOR only configuration. f = (A + B + C)(A + B + C')(A + B' + C)
Added by Brittany C.
Close
Step 1
f = A + B + C(A + B + C) = A + B + CA + CB + CC Show more…
Show all steps
